Aluminum is lightweight, corrosion-resistant, and perfect for projects like custom bike frames or patio furniture. But many DIYers assume welding it requires industrial equipment. The truth? With the right approach, you can achieve clean aluminum welds in your garage. Here’s how.
Why Aluminum Welding Feels Challenging
Aluminum’s properties make it trickier than steel:
- High Thermal Conductivity: Heat disperses quickly, requiring precise temperature control.
- Oxidation Layer: The surface forms an oxide layer that melts at 2,040°C (vs. aluminum’s 660°C), leading to contamination if not removed.
- Softness: Molten aluminum can sag or burn through thin sheets.
Equipment You Actually Need
You don’t need a $5,000 setup. Here’s a realistic toolkit:
Tool | Purpose | Budget-Friendly Alternative |

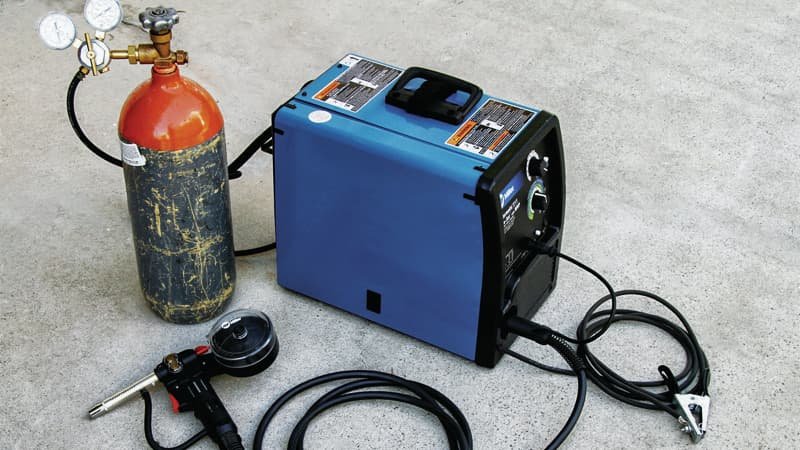

Welder | AC/DC TIG welder for clean welds | MIG welder with spool gun attachment |
Gas | Pure argon shielding gas | Rent a small cylinder ($15/month) |
Consumables | 4043 or 5356 filler rods | Buy in bulk to reduce cost per weld |
Cleaning Supplies | Stainless steel brush, acetone | Use dedicated tools to avoid contamination |
Avoid using the same brush for steel and aluminum.
Step-by-Step Guide for Home Welding
- Prep the Metal
- Clean Thoroughly: Wipe the surface with acetone to remove oils.
- Remove Oxidation: Use a stainless steel brush in one direction only to avoid embedding particles.
- Set Up Your Welder

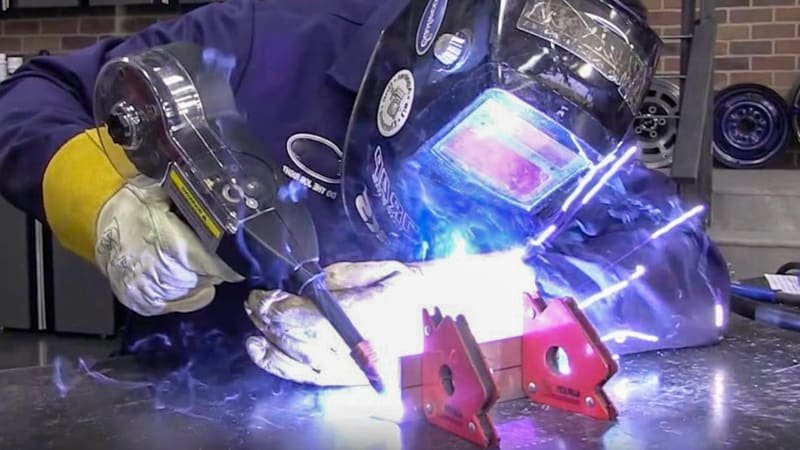

- MIG with Spool Gun: Set voltage to 18–22V and wire speed to 200–300 IPM.
- TIG Welding: Use AC mode, 70–150 amps, and a 2% thoriated tungsten electrode.
- Tack Weld First
Place small tack welds every 5–8 cm to prevent warping.
- Control Heat Input
- Pulse Welding: For TIG, use a pulsing technique (1 second on, 1 second off) to manage heat.
- Travel Speed: Move faster on thin sheets (<3 mm) to avoid burn-through.
Common Pitfalls and Fixes
- Problem: Porosity (tiny holes in the weld).
Solution: Ensure gas flow is 15–20 CFH and check for drafts in your workspace. - Problem: Cracking after cooling.
Solution: Use 4043 filler rod for general projects; 5356 is stronger but prone to cracks in high-stress areas. - Problem: Uneven bead appearance.
Solution: Maintain a consistent arc length (3 mm for MIG, 1.5 mm for TIG).
Cost Comparison: Home vs. Professional Welding
Aspect | Home Setup | Professional Service |
Initial Cost | $800–$1,200 | 0 (but$50–$150 per project) |
Time per Project | 2–4 hours | 1–2 hours |
Skill Requirement | Moderate practice needed | None |
Long-Term Savings | Pays off after 5–10 projects | Ongoing cost |
Example: Building a custom aluminum boat hatch costs $300+ at a shop.
Safety Reminders for Aluminum Welding
- Ventilation: Aluminum fumes aren’t toxic but can irritate lungs. Use a fan or open windows.
- UV Protection: TIG welding emits intense UV light. Wear a helmet with a #10–13 shade.
- Fire Safety: Keep a bucket of sand nearby (water worsens aluminum fires).
