How to Weld Cast Iron for Effective Crack Repair?

Have you ever stared at a cracked cast iron part, thinking it was destined for the scrap heap? Replacing heavy, expensive components is a major cost. I can show you that a successful, strong repair is entirely possible with the right technique.

Yes, cracked cast iron can be welded, but it demands a meticulous process. Success hinges on specific techniques like preheating, using nickel-based filler metals, controlling the welding sequence, and ensuring a very slow cooling rate to prevent new cracks from forming in the brittle material.

In my decade of working with industrial equipment, I have seen my fair share of cracked cast iron pump housings and engine blocks. It is a material that instills fear in many welders because it is notoriously unforgiving. But it is not impossible. It just does not behave like steel, and you cannot treat it that way. Let me break down the process I have learned to trust for reliable cast iron repair.

What is the Best Welding Process for Cast Iron Repair?

Confused about which welding process to use on cast iron? Choosing the wrong method is a surefire way to make the crack worse. I will clarify which process is the most reliable and why.

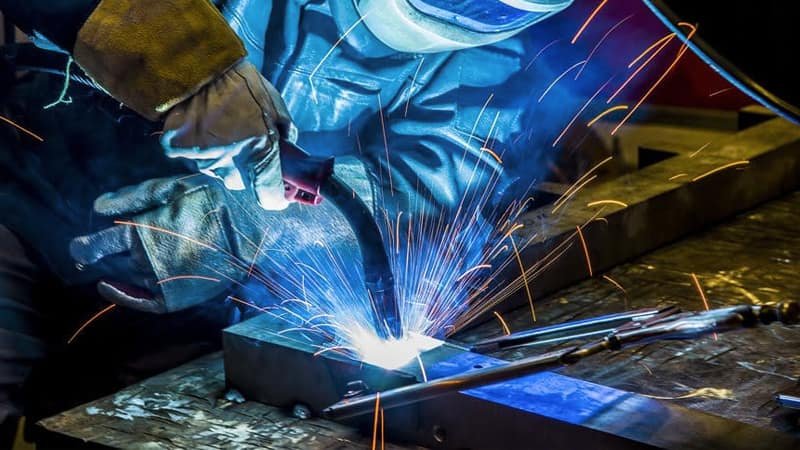

Stick welding (SMAW) with specialized nickel-based electrodes is the best and most common method for repairing cast iron. These nickel rods are designed to handle cast iron's brittleness and high carbon content, providing a ductile weld that resists cracking during cooling.

When it comes to welding cast iron, not all processes are created equal. The goal is to introduce as little stress as possible while creating a strong, crack-resistant bond.

Stick Welding (SMAW): This is the undisputed champion for most cast iron repairs. The reason lies in the specialized filler material. You must use nickel-based electrodes. There are two primary types:

• ENi-CI (99% Nickel): These rods are very soft and easily machinable, making them perfect for single-pass repairs on thin sections or areas that need to be drilled or tapped after welding. They are excellent for "cold welding" techniques.
• ENiFe-CI (55% Nickel/45% Iron): These rods are stronger, more ductile, and less expensive. They are the workhorse for joining thick sections, repairing high-strength cast iron, and even joining cast iron to steel.
  The stick process is forgiving, portable, and the flux on the electrodes helps manage the weld puddle.

TIG Welding (GTAW): TIG welding can produce very clean, precise welds on cast iron and is an excellent choice for experienced welders. You still need to use a nickel-based filler rod (like ERNi-CI). The main advantage is the precise heat control, but it requires a very clean surface and is slower than stick welding.

MIG Welding (GMAW): This is generally the least recommended method for DIY repairs. While nickel-based MIG wire is available, the process is very fast and puts a lot of heat into the part very quickly, increasing the risk of cracking. It is typically only used in specialized production environments.

Here's a comparison for cast iron repair:

How Do You Weld Cast Iron Successfully?

Afraid your cast iron repair will just crack again as soon as it cools? The secret is not in the weld itself, but in the meticulous process surrounding it. I will share my proven step-by-step guide.

To weld cast iron successfully, you must follow a strict procedure: thorough cleaning and crack preparation, controlled preheating, welding in short, alternating stitches, immediate peening of each weld bead to relieve stress, and an extremely slow cooling process under insulating blankets.

A successful cast iron weld is 90% preparation and process, and only 10% the act of welding itself. Skipping any of these steps dramatically increases the risk of failure.

Step 1: Meticulous Preparation
First, the part must be spotlessly clean. Degrease it thoroughly. Cast iron is porous and can soak up oil over years of service. Heating oily cast iron will cause the oil to leach out and contaminate your weld. Next, find the ends of the crack and drill a small "stop-hole" at each tip. This prevents the crack from propagating further as you weld. Then, use a grinder to create a wide "V" groove along the crack. This gives you full access to the root of the crack and ensures 100% penetration.

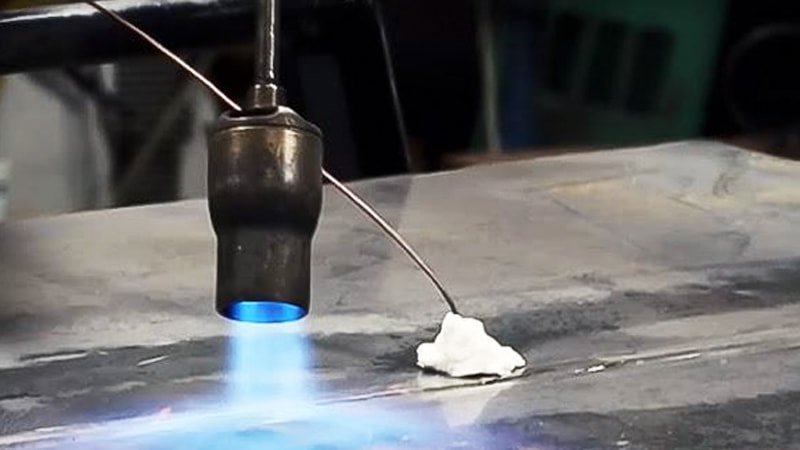

Step 2: Controlled Preheating
This is a critical step. Slowly and evenly preheat the entire casting, or at least a large area around the weld, to between 500-1200°F (260-650°C), depending on the type of cast iron. Preheating does two things: it burns off trapped impurities and, most importantly, it slows the cooling rate of the weld area. This prevents the formation of brittle martensite in the heat-affected zone (HAZ) and reduces the risk of stress cracking.

Step 3: Welding and Peening
Use the appropriate nickel rod and weld in short, straight beads (1-2 inches long). Do not weave. After laying each short bead, immediately use a peening hammer (a hammer with a rounded head) to gently tap the weld bead. This peening action helps to relieve the shrinkage stresses that build up as the weld cools and solidifies.

Step 4: Extremely Slow Cooling
This is arguably the most important step of all. As soon as you are finished welding, the part must be cooled as slowly as humanly possible. The best way to do this is to bury it in a container of dry sand or wrap it tightly in high-temperature insulating blankets. Let it cool overnight or for up to 24 hours. Never, ever quench cast iron or let it cool in open air.

Here’s a summary of the critical steps:

What is the Strongest Way to Repair Cast Iron?

Is welding always the best and strongest solution for a cracked cast iron part? When structural integrity is on the line, you need to be sure. I will compare welding to other common repair methods.

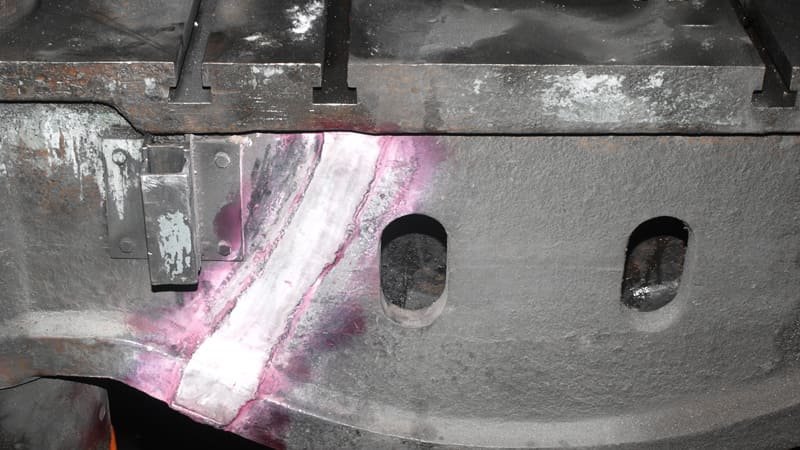

For restoring structural integrity, a properly executed weld with high-strength nickel-iron rods (ENiFe-CI) is the strongest way to repair cast iron, creating a full-strength metallurgical bond. However, for certain applications, brazing and mechanical stitching can also provide very strong and reliable repairs.

When you need to repair a critical, load-bearing cast iron component, strength is the top priority. While welding is often the go-to, it is important to understand how its strength compares to other methods.

Welding: A properly executed fusion weld using a high-strength nickel-iron electrode (ENiFe-CI) is designed to be as strong as, or even stronger than, the original cast iron base metal. It creates a complete metallurgical bond, effectively making the part whole again. This is the preferred method for high-stress applications like repairing engine blocks or heavy machinery frames where the part must withstand significant force and vibration. The challenge, as we have discussed, is that the process is complex and carries the risk of introducing new weaknesses if not done perfectly.

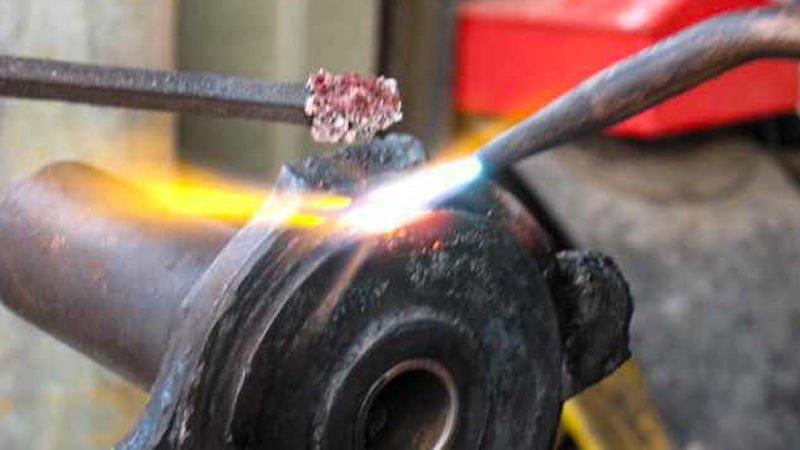

Brazing: Braze welding is another excellent option. It involves heating the cast iron (usually with an oxy-acetylene torch) and using a bronze or brass filler rod. The key difference is that the cast iron itself is not melted, only the filler rod. This lower heat input significantly reduces the risk of cracking the base metal. A properly brazed joint is very strong—often exceeding the strength of the cast iron itself—and is a fantastic choice for many repairs. It is often considered safer and more reliable than welding by many old-school machinists.

Mechanical Stitching: This is a non-heat repair method that involves drilling a pattern of holes along the crack, tapping them, and inserting special metal "stitches" or "locks" to pull the crack together mechanically. It is an incredibly strong and reliable method for repairing large cracks in heavy castings where welding might cause distortion. While it is not a leak-proof repair on its own (it often requires a sealant), it is exceptionally strong for restoring structural integrity.

Here's how the methods compare for strength:

Final Thoughts

Welding cracked cast iron is a demanding but highly rewarding skill. Success depends on meticulous preparation, preheating, using the correct nickel rods, and, most critically, a very slow cooling process to ensure a strong, crack-free repair.
