Welding might look like magic, joining metal pieces with sparks and heat, but there’s a hidden science at play. While the weld seam appears solid, the process alters the metal’s internal structure in ways that can make or break its performance. Ignoring these changes can lead to catastrophic failures, such as collapsed bridges or fractured pipelines. Understanding these transformations is critical for ensuring safety and longevity in structures. Let’s explore how welding reshapes metal properties and what this means for engineers, fabricators, and inspectors.
The Hidden Battlefield: Heat-Affected Zone

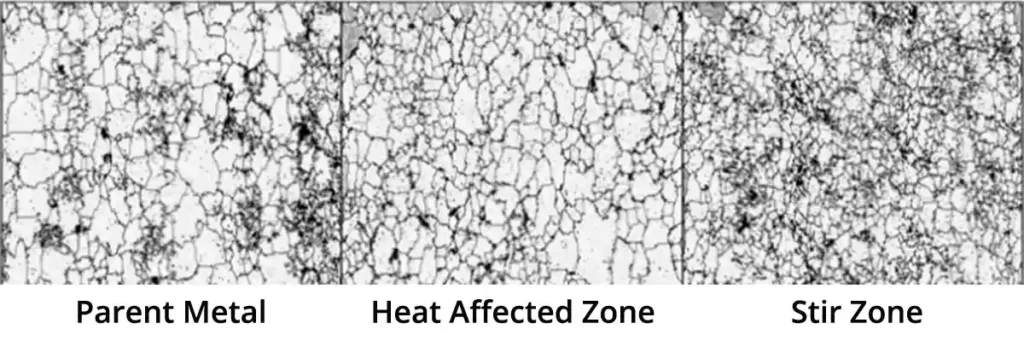

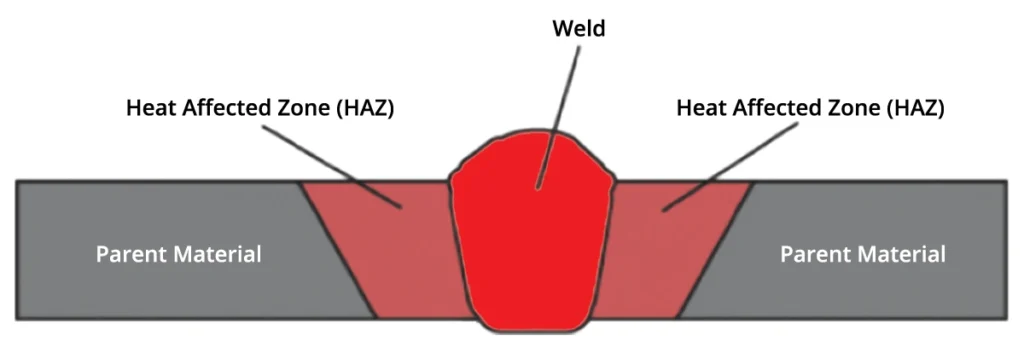

Every weld creates a thermal battleground. The heat-affected zone (HAZ), the area surrounding the weld that doesn’t melt but gets heated, undergoes critical changes. Imagine heating steel to 800°C; its grains swell like popcorn. Larger grains mean weaker metal—a principle explained by the Hall-Petch effect, which states that smaller grains enhance strength by obstructing dislocation movement. For example, a steel plate’s HAZ can lose up to 20% of its original toughness if cooling isn’t controlled.
Aluminum behaves differently. When welded, its HAZ often hardens due to rapid cooling (quenching), but this comes at a cost. The same hardening process reduces ductility, making the metal prone to cracking under stress. Aerospace engineers combat this by using differential cooling techniques—like localized water jets—to manage thermal gradients in aluminum aircraft fuselages.
Stainless steel adds another layer of complexity. Prolonged exposure to high temperatures in the HAZ can cause sensitization, where chromium reacts with carbon, depleting corrosion resistance. This is why low-carbon grades like 316L are preferred for welded chemical tanks.
The Hidden Battlefield: Heat-Affected Zone
Stress Wars: Residual Tension in Welds
As molten metal cools, it shrinks. But the surrounding cooler metal resists this contraction, creating invisible forces called residual stress. Picture stretching a rubber band and gluing it in place; the stored energy threatens to snap. In welds, residual stress can reach 70% of the metal’s yield strength, silently weakening joints over time.
Automotive chassis welds face constant vibration, accelerating fatigue cracks. To combat this, industries use post-weld heat treatment (PWHT), heating components to 600–650°C for steel. This process allows atoms to rearrange via diffusion, transforming the microstructure into a more ductile state. For pipelines, vibratory stress relief—applying mechanical vibrations to disrupt stress fields—is a portable alternative to PWHT.
Advanced measurement techniques like X-ray diffraction and hole-drilling strain gauges quantify residual stress, guiding engineers in critical applications like nuclear reactor vessels.
Microscopic Transformations: Phase Changes
Welding’s heat triggers phase changes in metals. Take carbon steel: rapid cooling transforms austenite into martensite, a hard but brittle phase. While martensite suits knife blades, it’s disastrous for pipelines. A poorly cooled weld in Arctic oil pipelines could shatter under impact loads, a phenomenon known as cold cracking.
Controlling cooling rates is key. Preheating thick steel plates to 150–200°C before welding slows cooling, allowing softer phases like ferrite and pearlite to form. TTT diagrams (Time-Temperature-Transformation) guide these protocols, plotting phases against cooling rates. For thin stainless steel sheets, precise laser welding minimizes heat input, preserving corrosion resistance by avoiding chromium carbide formation.
Material Matters: How Metals Respond
Not all metals react the same. Here’s how common materials fare:
Material | Key Welding Challenge | Practical Fixes |
Carbon Steel | Martensite brittleness | Preheat to 150°C, use low-hydrogen rods |
Stainless Steel | Chromium depletion (sensitization) | Use low-carbon grades (e.g., 316L) or ensure rapid cooling |
Aluminum | Porosity from hydrogen absorption | Store filler rods in dry conditions |
Titanium | Oxygen contamination | Weld in airtight chambers with argon |
Copper Alloys | High thermal conductivity | Preheat to 300°C, use high-current TIG |
For example, shipbuilders welding high-strength steel hulls use submerged arc welding (SAW) for its low hydrogen content, preventing hydrogen-induced cracking in salty marine environments. Copper’s high thermal conductivity demands preheating to avoid incomplete fusion in power plant busbars.
Technique Tweaks: Balancing Heat and Strength
Your welding method dictates outcomes. Gas metal arc welding (GMAW) with pulsed current reduces heat input by 30% compared to conventional methods, shrinking the HAZ. This is critical for delicate electronics enclosures where distortion warps mounting points.
Tungsten inert gas (TIG) welding offers precision for thin materials, like aerospace titanium sheets, but requires skilled operators. In contrast, friction stir welding (FSW) mechanically mixes metals without melting them, avoiding phase changes entirely. Train manufacturers use FSW for aluminum carriage panels, ensuring consistent strength across long seams.
Case Studies: When Welding Decides Success
Bridge Building
A suspension bridge’s steel cables rely on flawless welds. In one project, uncontrolled HAZ grain growth caused a 10% drop in load capacity. Engineers switched to narrow-gap welding, concentrating heat and preserving base metal properties.
Medical Implants
Titanium hip implants require contamination-free welds. A single oxygen-rich pore weakens the joint. Manufacturers now use electron beam welding in vacuum chambers, achieving 99.99% purity in weld zones.
Aeospace Rocket Engines
Inconel 718, a nickel superalloy used in rocket nozzles, suffers from weld cracking under extreme temperatures. Laser-hybrid welding combines laser precision with arc welding depth, mitigating thermal stress in these critical components.
Inspection Secrets: Seeing Beyond the Surface

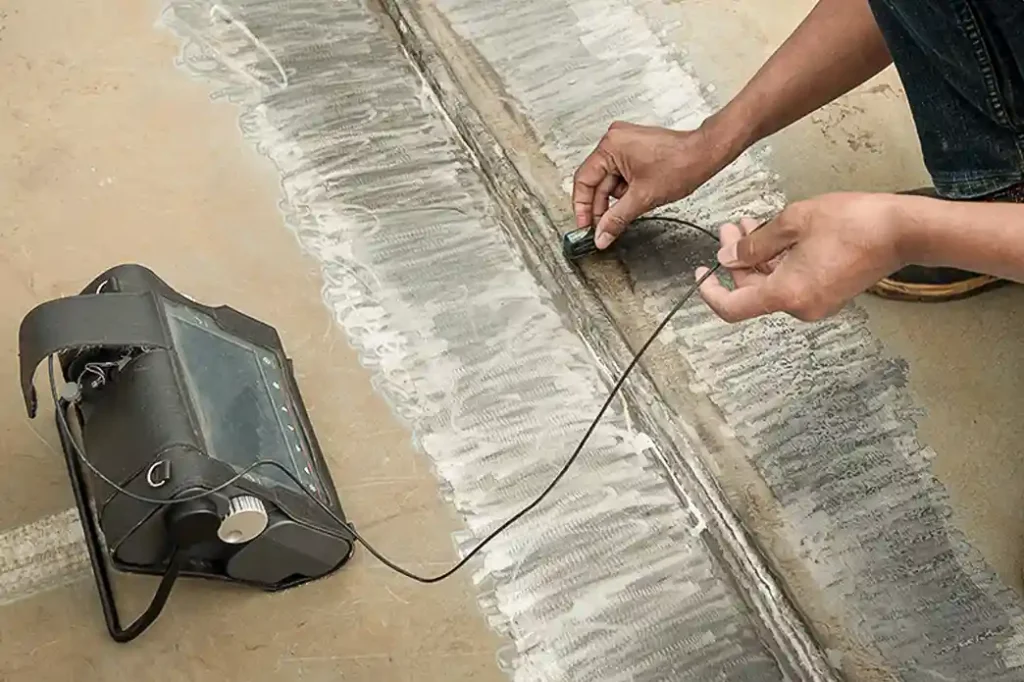

X-rays and ultrasound aren’t just for hospitals. Phased array ultrasonics create 3D maps of weld integrity, detecting subsurface cracks as small as 0.5 mm. For surface flaws in stainless steel kitchen equipment, dye penetrant testing reveals hairline cracks invisible to the naked eye.
Metallography—slicing, polishing, and etching weld samples—exposes grain structures. A pipeline weld inspection once revealed untempered martensite, prompting PWHT that prevented a refinery explosion. Emerging technologies like AI-driven thermal imaging now predicts weld quality in real-time by analyzing heat patterns during welding.
