Struggling with inconsistent stainless steel MIG welds, or seeing discoloration and reduced corrosion resistance? Your shielding gas choice is likely the culprit. I will guide you to the perfect gas for strong, clean stainless steel results.
The best shielding gas for MIG welding stainless steel is typically a blend of Argon with a small percentage of either Carbon Dioxide (CO2) or Oxygen (O2), commonly 98% Argon / 2% CO2 or 99% Argon / 1% Oxygen. These reactive components enhance arc stability, improve weld puddle fluidity, and ensure proper wetting and penetration, critical for stainless steel's unique properties.
After a decade immersed in vacuum systems and industrial applications, I've seen countless welding setups. When it comes to MIG welding stainless steel, the shielding gas is not just an afterthought; it is a fundamental ingredient for success. Getting this wrong leads to frustrating issues like porosity, discoloration, and even compromised corrosion resistance. Let me explain why the right gas is so vital.
What Gas to Use When MIG Welding Stainless Steel?
Confused about which gas to use for MIG welding stainless steel? Using the wrong blend can compromise weld quality, leading to costly reworks and structural weaknesses. I will clarify the precise gas requirements for optimal results.
For MIG welding stainless steel, you must use an Argon-rich blend with a small percentage of an active gas like CO2 or Oxygen. Pure Argon is generally unsuitable for MIG stainless, as it leads to an unstable arc and poor wetting, while CO2-heavy blends can cause carbide precipitation and reduce corrosion resistance.
When it comes to MIG welding stainless steel, you cannot just grab any gas off the shelf. The choice of shielding gas is paramount because stainless steel has unique metallurgical properties, particularly its chromium content which provides corrosion resistance. If you use the wrong gas, you risk "sugaring" on the back of the weld, discoloration, and a significant reduction in the material's corrosion resistance.
The foundation for MIG welding stainless steel is always Argon. Argon provides the stable arc necessary for the MIG process. However, unlike TIG welding, pure Argon is usually insufficient for MIG welding stainless steel. Why? Pure Argon produces a very narrow arc, which leads to poor wetting of the weld puddle (meaning the molten metal does not spread out smoothly) and can result in significant "roping" or a crowned bead. It also often lacks the necessary arc stability for consistent wire feed.
To overcome these issues and ensure proper weld quality, a small percentage of a reactive gas is added to the Argon. The two most common choices are Carbon Dioxide (CO2) or Oxygen (O2).
- CO2: Adding a small amount of CO2 (typically 1-2%) to Argon helps stabilize the arc and provides better wetting and penetration. However, too much CO2 can cause carbon pickup in the weld metal. This carbon can combine with chromium to form chromium carbides, reducing the chromium available for corrosion protection and making the weld more susceptible to intergranular corrosion. This is a critical concern, especially for highly corrosive environments.
- Oxygen: A small addition of Oxygen (typically 1-2%) to Argon also stabilizes the arc, improves wetting, and gives a smoother bead profile. Oxygen is generally preferred for its better wetting action and smoother bead, and it avoids the carbon pickup issues associated with CO2. However, too much oxygen can lead to excessive oxidation and a darker, more sooty weld.
Choosing the right active component and its precise percentage is crucial for balancing arc stability, puddle control, and the final metallurgical properties of the weld.
Here’s a look at common MIG shielding gas blends for stainless steel:
| Gas Blend (Argon Balance) | Active Component | Typical % | Benefits | Considerations |
|---|---|---|---|---|
| Ar/CO2 | CO2 | 1-2% | Good arc stability, penetration | Carbon pickup risk, corrosion |
| Ar/O2 | Oxygen | 1-2% | Excellent wetting, smooth bead | Can cause oxidation, darker weld |
| Ar/He/CO2 | Helium + CO2 | 1-2% He + 1-2% CO2 | Increased heat, better penetration (thick sections) | More expensive, complex |
What is the Best Shielding Gas for Welding Stainless Steel?
Seeking the ultimate shielding gas for high-quality stainless steel welds? An incorrect gas blend will compromise the metal's unique properties, leading to weakened joints and poor corrosion resistance. I will pinpoint the ideal choice.
For welding stainless steel, especially MIG, the best shielding gas is an Argon blend with a small reactive component, typically 1-2% Oxygen (Ar/O2) or 1-2% Carbon Dioxide (Ar/CO2). While TIG uses pure Argon, the reactive gas in MIG provides arc stability and proper wetting without significantly compromising stainless steel's corrosion resistance, which is critical for its long-term integrity.
When we talk about the "best" shielding gas for welding stainless steel, it is essential to distinguish between welding processes. For TIG welding stainless steel, the answer is unequivocally 100% Argon. TIG relies on a non-consumable tungsten electrode and requires a completely inert environment to prevent contamination of the electrode and the weld puddle. Pure Argon provides this stable, inert shield, leading to very clean, precise, and corrosion-resistant welds.
However, for MIG welding stainless steel, the "best" gas is always an Argon-based blend containing a small percentage of a reactive gas. This reactive component serves a vital purpose: it helps to stabilize the MIG arc and improve the wetting action of the molten weld puddle. Without it, the arc would be erratic, and the weld bead would be crowned and prone to defects. The key is to add just enough reactive gas to get these benefits without compromising the stainless steel's inherent properties, particularly its corrosion resistance.
Argon/Oxygen (Ar/O2) blends (e.g., 99% Ar / 1% O2 or 98% Ar / 2% O2) are often considered superior for many stainless steel MIG applications. The small amount of oxygen improves the fluidity of the weld puddle, leading to excellent wetting, a smoother bead appearance, and better penetration. Oxygen also helps to stabilize the arc without introducing carbon, which is crucial for maintaining the chromium content that provides stainless steel its corrosion resistance. I have found that welds made with Ar/O2 blends often have a cleaner appearance and are less prone to discoloration if settings are optimized.
Argon/CO2 (Ar/CO2) blends (e.g., 98% Ar / 2% CO2) are also widely used. The CO2 provides excellent arc stability and a robust arc, making it very forgiving for general-purpose welding. However, the carbon in CO2 can, in some cases, react with the chromium in the stainless steel, forming chromium carbides. This "sensitization" can reduce the stainless steel's corrosion resistance, especially in the heat-affected zone (HAZ) or if the material is not a low-carbon (L) grade. For applications where maximum corrosion resistance is required, especially for thin sections or multi-pass welds, Ar/O2 blends are generally preferred. Choosing between these depends on the specific grade of stainless steel, the desired aesthetics, and the criticality of corrosion resistance.

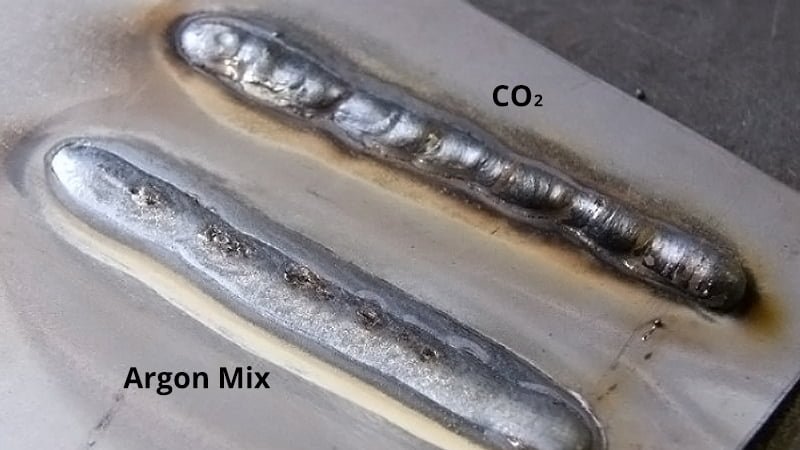

Here's how gas impacts stainless steel weld properties:
| Reactive Gas | % Range | Arc Stability | Puddle Wetting | Bead Appearance | Corrosion Impact |
|---|---|---|---|---|---|
| Oxygen | 1-2% | Excellent | Excellent | Smooth, bright | Minimal |
| CO2 | 1-2% | Excellent | Good | Flatter | Potential carbon pickup (carbide) |
| Pure Argon | N/A | Poor (MIG) | Poor (MIG) | Crowned (MIG) | N/A (excellent for TIG) |

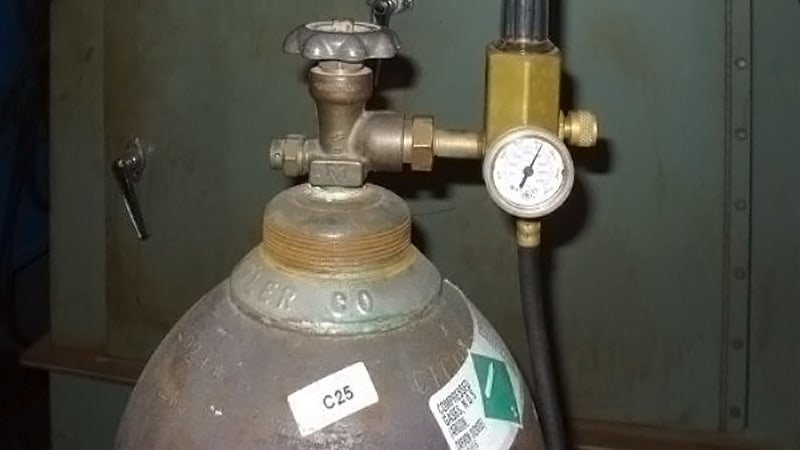

Can You Weld Stainless Steel with 75 Argon 25 CO2?
Considering using a common 75 Argon / 25 CO2 mix for stainless steel? This popular blend is often a costly mistake for stainless, leading to compromised properties and weld defects. I will explain why it is generally unsuitable.
No, you generally cannot weld stainless steel with 75% Argon / 25% CO2 (often called C25) for most applications. The high CO2 content introduces too much carbon into the weld, leading to carbide precipitation, which severely reduces stainless steel's corrosion resistance and can cause brittleness or "sugaring" on the weld surface.
This is one of the most common misconceptions I encounter: "I use 75/25 for mild steel, so it should work for stainless, right?" The answer is a firm no for critical stainless applications. While you can make a weld with 75 Argon / 25 CO2 (often referred to as C25), the resulting weld will likely have compromised properties that defeat the purpose of using stainless steel in the first place.
The problem lies with the high percentage of CO2. Stainless steel gets its "stainless" properties from a protective chromium oxide layer that forms on its surface. This chromium is very reactive with carbon at high temperatures. When you introduce 25% CO2 into the shielding gas, a significant amount of carbon is picked up by the molten weld metal. This carbon then combines with chromium, forming chromium carbides. These carbides deplete the chromium in the surrounding metal, creating a "chromium-depleted zone" or "sensitization." In these zones, the material loses its corrosion resistance and becomes highly susceptible to rust and intergranular corrosion, especially in aggressive environments.
Furthermore, welding stainless steel with C25 can lead to:
- Increased spatter: The arc characteristics of C25 are more aggressive, leading to more spatter than typical stainless blends.
- Poor wetting and bead profile: The bead might be crowned, and the weld can have an inconsistent appearance.
- "Sugaring" or oxidation: This is a severe form of oxidation on the back of the weld, indicative of inadequate shielding or excessive reactive gas, further compromising corrosion resistance.
While C25 is excellent for mild steel, it is fundamentally unsuitable for stainless steel where corrosion resistance and mechanical properties are paramount. Always use specific Argon-reactive gas blends with very low CO2 or O2 percentages (typically 1-2%) for stainless steel MIG welding. If you only have access to C25, it is better to TIG weld with pure Argon.
Here’s why high CO2 (like C25) is problematic for stainless steel:
| Aspect | Impact of High CO2 (e.g., 25%) | Ideal Gas Blend for Stainless Steel |
|---|---|---|
| Chromium Reactivity | Forms chromium carbides | Minimal carbon, preserves chromium |
| Corrosion Resistance | Significantly reduced | Maintained, often enhanced |
| Sensitization | High risk | Low risk |
| Weld Appearance | Increased spatter, crowned bead | Smooth bead, minimal spatter |
| Mechanical Properties | Can cause brittleness, reduced ductility | Optimal ductility and strength |

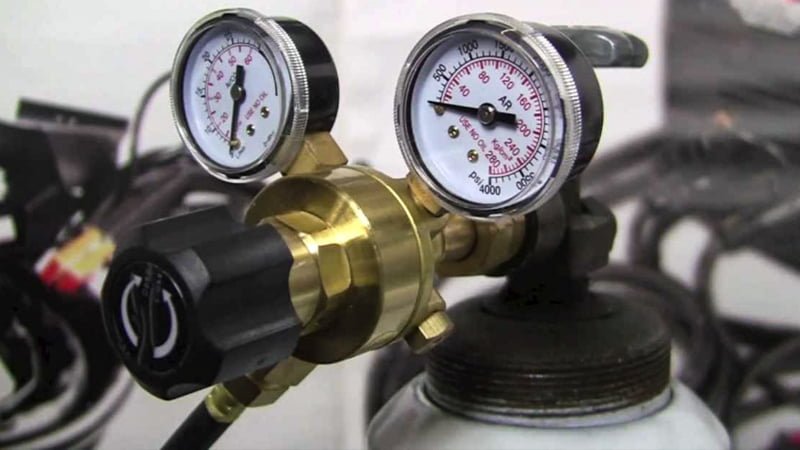

Can You Use Pure Argon for TIG Welding Stainless?
Wondering if pure Argon is suitable for TIG welding stainless steel? Using the wrong gas for TIG can lead to poor arc stability and contaminated welds. I will confirm the best choice for TIG stainless.
Yes, you can and should use 100% pure Argon for TIG welding stainless steel. Argon provides the necessary inert atmosphere to protect the non-consumable tungsten electrode and the molten weld puddle from atmospheric contamination, ensuring a clean, strong, and corrosion-resistant weld without spatter or discoloration.
When it comes to TIG welding stainless steel, the answer regarding pure Argon is simple and straightforward: Yes, absolutely. In fact, 100% pure Argon is the industry standard and preferred shielding gas for TIG welding stainless steel across almost all applications.
The TIG process itself relies on an inert gas shield to protect the non-consumable tungsten electrode and the molten weld pool. Argon, being an inert gas, provides this protection without reacting with the base metal or the filler metal. This is crucial for stainless steel because it prevents the formation of oxides and nitrides, which can lead to porosity, discoloration, and a reduction in the material's inherent corrosion resistance.
Here's why pure Argon is ideal for TIG stainless:
- Arc Stability: Argon provides a very stable and predictable arc, which is essential for the precise control that TIG welding demands.
- Cleanliness: With no reactive components, Argon ensures a clean weld puddle, minimizing spatter and eliminating the need for post-weld cleanup of flux or slag. This results in visually appealing welds that are also metallurgically sound.
- Corrosion Resistance: By preventing atmospheric contamination, pure Argon helps to maintain the chromium content in the stainless steel weld, ensuring its corrosion resistance is preserved.
- Penetration: While Helium can be added for deeper penetration on thicker materials, pure Argon provides sufficient penetration for most stainless steel TIG applications.

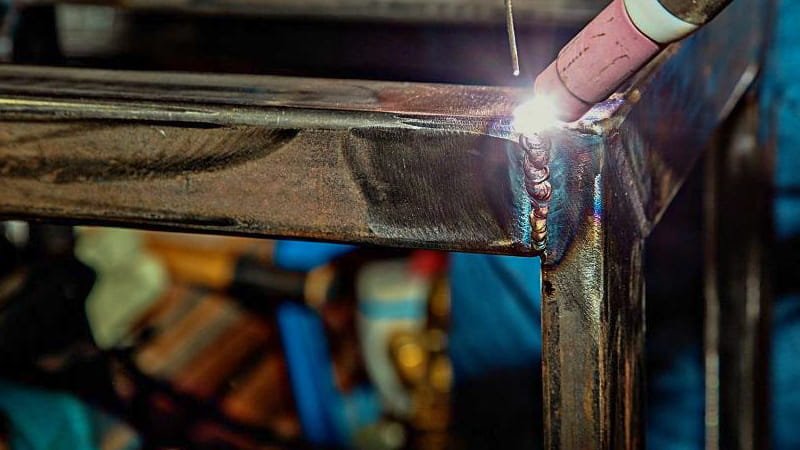

For highly critical applications, particularly with thin stainless steel, I often advise clients to consider using backing gas (also 100% Argon). Backing gas is introduced to the backside of the weld joint to prevent oxidation and "sugaring" (a rough, burnt appearance) on the underside of the weld bead. This ensures that both sides of the weld maintain their corrosion resistance and strength. The use of pure Argon, both for shielding and backing, forms the foundation for achieving the highest quality and integrity in stainless steel TIG welds.
Here are the benefits of using pure Argon for TIG stainless:
| Benefit | Description | Why it's Important for Stainless |
|---|---|---|
| Arc Stability | Consistent, focused arc for precision control | Facilitates high-quality, controlled welds |
| Weld Purity | Prevents atmospheric contamination | Ensures corrosion resistance, strength |
| No Slag/Spatter | Clean weld, minimal post-weld cleanup | Superior aesthetics, reduced labor |
| Optimal Heat Control | Allows precise puddle manipulation | Minimizes distortion, maintains properties |
| Electrode Longevity | Protects tungsten from oxidation | Extends electrode life, consistent performance |
Final Thoughts
For MIG welding stainless steel, use Argon with 1-2% CO2 or O2 for stability and wetting. Avoid high CO2 blends like 75/25, as they compromise corrosion resistance. For TIG, 100% pure Argon is always the ideal choice for clean, strong, and precise stainless welds.
